DLA410A
Description:
DLA410 is a medium and big sized line array speaker with accurate coverage angle, light weight and high SPL. It uses low distortion mid-bass unit, high quality MF and HF coaxial unit with special waveguide and horn, accurate and uniform coverage over the effective frequency range. The whole hanging system adopts aluminum alloy material, humanized design makes the system fast installation and ensures safety, and can be used in combination with multiple speakers. Unit configuration:2x10" high efficiency mid-bass units, 1x1.4" exit throat coaxial MF and HF unit, 90mm voice coil MF driver and 44mm voice coil HF driver, it's 3-way speaker; The wood box adopts multilayer composite plywood, wear-resistant and waterproof polyurea paint. DLA410A is equipped with FA2.38 digital amplifier module based on DLA410 to be an active loudspeaker.
Features:
●High quality plywood with wear-resistant and waterproof polyurea paint
●Neodymium coaxial MF & HF unit and neodymium woofer
●3-way design
●Special line array horn
●Small cabinet, light weight, high SPL
●Convenient for hanging and stacking
●Good used for stadiums,big scale performance, conference centers and odeums.
Specification:
| MODEL | DLA410 | DLA410A |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18Hz | 60Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 55Hz-20kHz | 55Hz-20kHz |
| DRIVERS | 2×10"(250mm)/3"voice coil LF | 2×10"(250mm)/3"voice coil LF |
| 1×1.4"(36mm)/3.5"voice coil MF | 1×1.4"(36mm)/3.5"voice coil MF | |
| 1×1.4"(36mm)/1.7"voice coil HF | 1×1.4"(36mm)/1.7"voice coil HF | |
| RATED POWER | 500W RMS,2000W peak | 300W/8Ω+800W/8Ω |
| SENSITIVITY | 101dB 1watt/1meter | |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,135dB peak |
| IMPEDANCE | 8 ohms nominal | |
| DISPERSION(-6dB) | Horizontal: 90° | Horizontal: 90° |
| Vertical coverage: Varies,depending on array length and configuration | Vertical coverage: Varies,depending on array length and configuration | |
| CROSSOVER FREQUENCIES | 700Hz，6KHz passive | |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 614mm×403mm×725mm | 614mm×403mm×725mm |
| NET WEIGHT | 26 kg/pc | 28 kg/pc |
| GROSS WEIGHT | 30 kg/pc | 30 kg/pc |

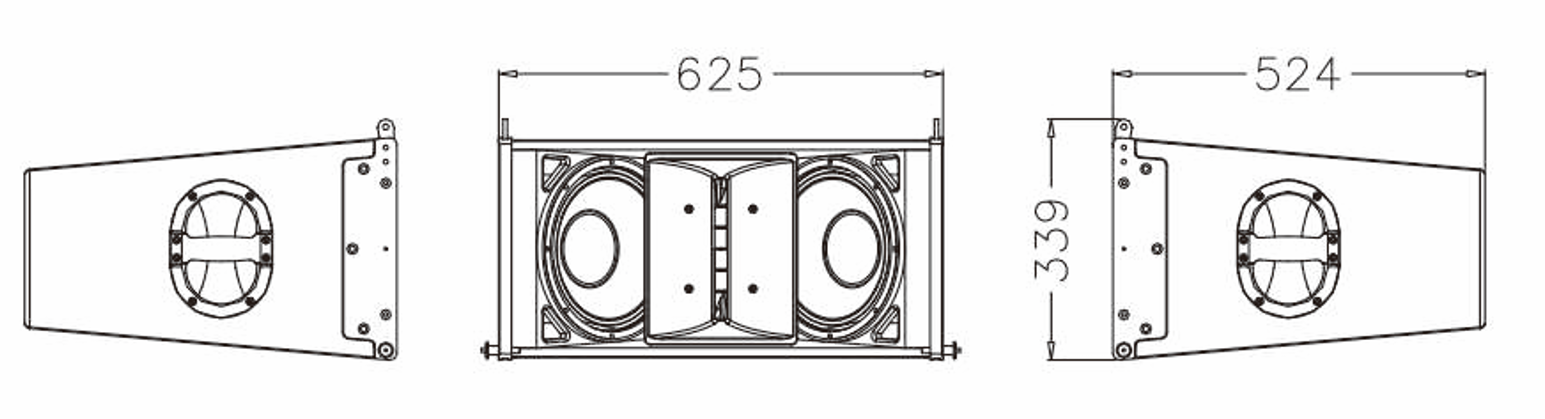

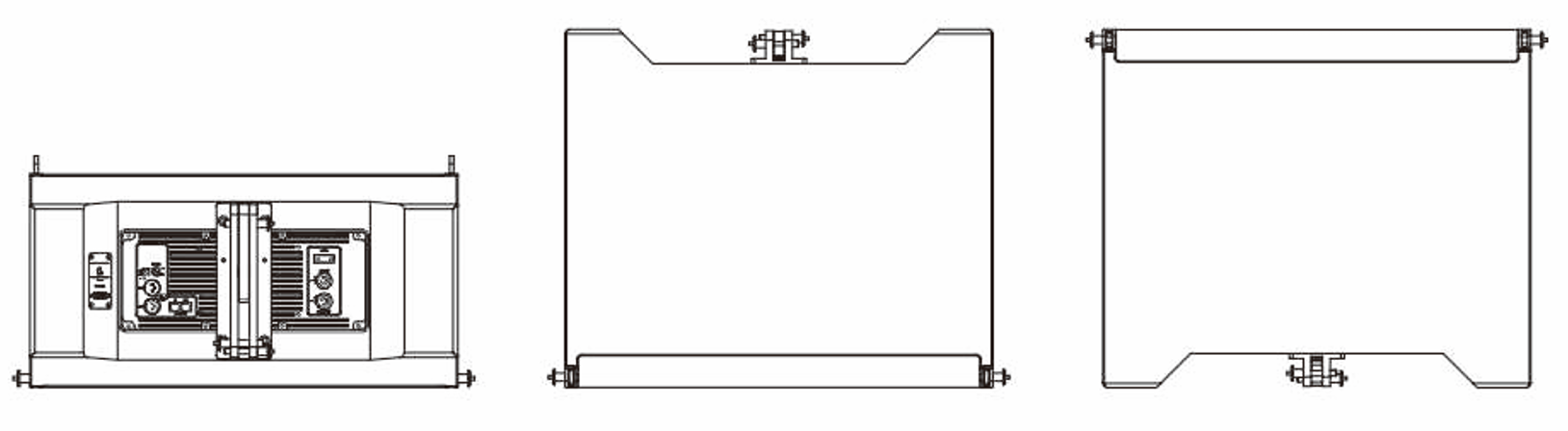

Configuration:
