DLA815BAS 15 Inch Active Subwoofer

Single 15' subwoofer, used with DLA803 ,Polyurea paint
Availability:
Quantity:
  • DLA815BAS

  • fdB

  • 8518210000

Description:

DLA815BAS is an active subwoofer system, equipped with a three  channels digital amplifier with DSP, drive itself 15" subwoofer, can also drive  two DLA803, form a small system, can support and stack combination, meet a  variety of small scenarios, system combination is convenient and fast. Unit  configuration: 1x15" 75mm voice coil special designed woofer unit, bass-reflex  design. The cabinet is made of multilayer composite plywood with wearresistant polyurea paint.


Features:

● Special customized woofer unit, bass-  reflex design, full and elastic sound

●Quick setup for stacking and supporting

●Applications: multifunction halls, lecture   halls, large classrooms, churches and   touring


Specification:

MODEL DLA815BAS
FREQUENCY RESPONSE(-3dB) 40Hz-300Hz and 50Hz-20kHz
DRIVERS 1×15"(385mm)/3"voice coil LF
RATED POWER 400W/8Ω+400W/8Ω+800W/8Ω
SENSITIVITY ——
MAXIMUM SPL 125dB continuous,131dB peak
IMPEDANCE ——
INPUT CONNECTORS INPUT TYPE: Balanced Differential line

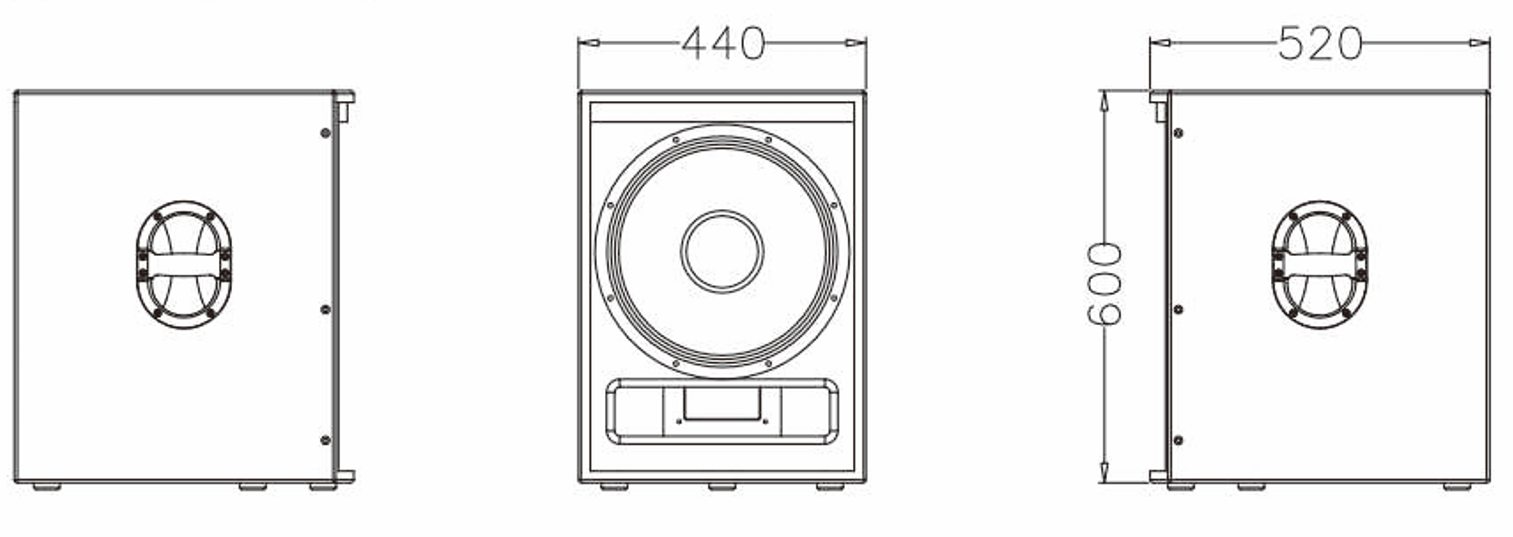

PACKAGE SIZE 600mm×520mm×680mm
NET WEIGHT 34 kg/pc
GROSS WEIGHT 37 kg/pc


Configuration:

DLA815BAS


Data Sheets Download:

DLA815BAS.pdf
