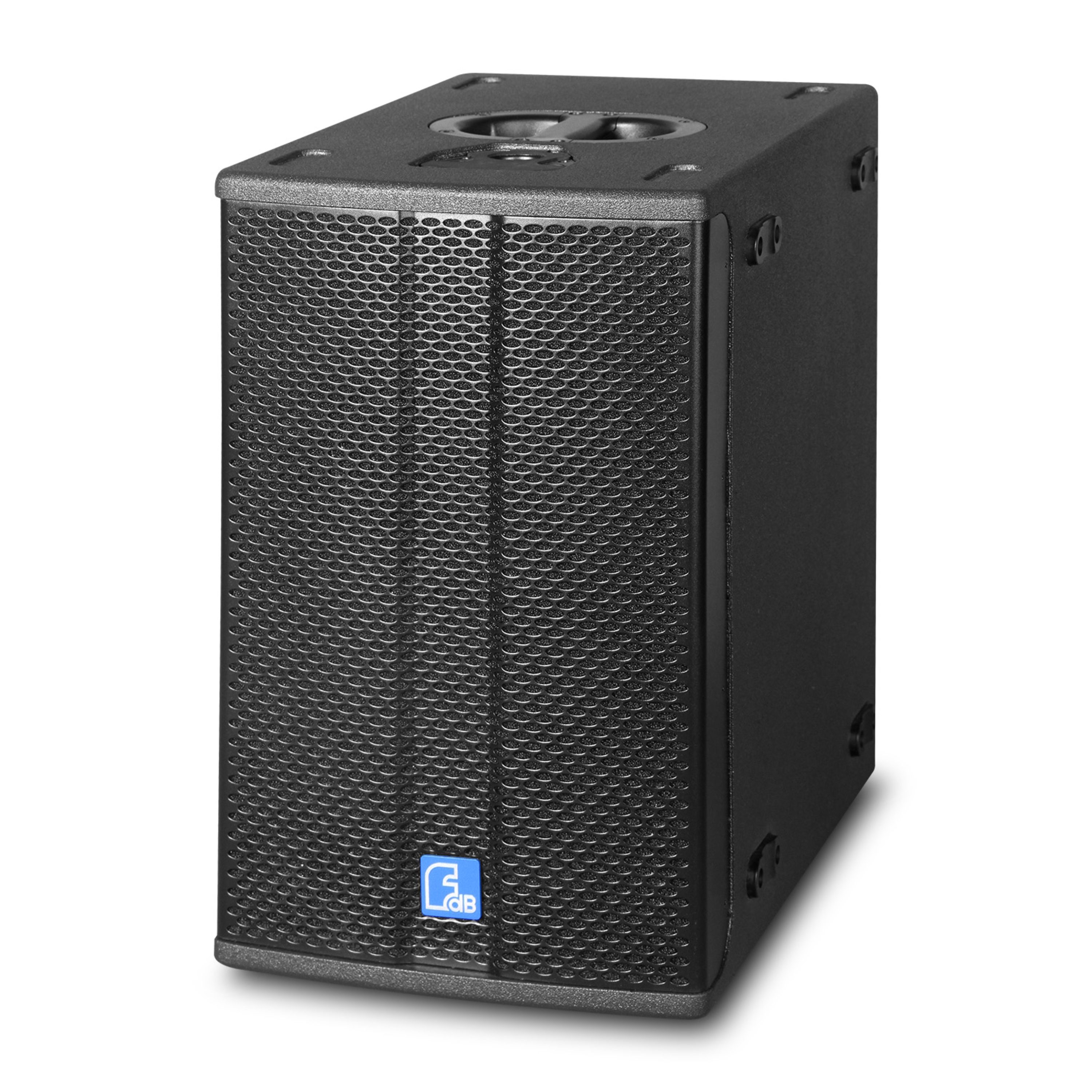

K112B Single 12 inc Subwoofer

Availability:
Quantity:
  • K112B

  • fdB

  • 8518210000

Description:

K112B is a single 12" subwoofer, bass-reflex design, customized  woofer, rich and powerful sound. Unit configuration: 1x12" 75mm  high efficicency woofer. The cabinet is made of multilayer composite  plywood with wear-resistant polyurea paint. K112BAS is an active  system with two channels digital amplifier with DSP, which has full  range and sub outputs functions.


Features:

●High quality unit configuration

●Multi-ways for installation, easy and quick   operation

●Digital amplifier with DSP  With full range and sub outputs

●Applications: small touring, churches,   conference rooms, multifunction halls, can   be used with K series full range speaker to   improve the bass performance.


Specification:

MODEL

K112B

K112BAS

FREQUENCY RESPONSE(-3dB)

40Hz-300Hz

40Hz-300Hz and 50Hz-20kHz

DRIVERS

1x12"(300mm)/3"voice coil LF

1x12"(300mm)/3"voice coil LF

RATED POWER

300W RMS,1200W PEAK

350W/8Ω+350W/8Ω,700W/4Ω+700W/4Ω

SENSITIVITY

96dB 1watt/1meter

——

MAXIMUM SPL

121dB continuous,127dB peak

121dB continuous,127dB peak

IMPEDANCE

8 ohms nominal

——

INPUT CONNECTORS

2xSpeakon NL4

INPUT TYPE: Balanced Differential line

PACKAGE SIZE

605mmx415mmx632mm

605mmx415mmx632mm

NET WEIGHT

22 kg/pc

24 kg/pc

GROSS WEIGHT

26 kg/pc

28 kg/pc


Configuration:

K112B K112BAS-07


Data Sheets Download:

K112B.pdf
