K115B
fdB
8518210000
Description:

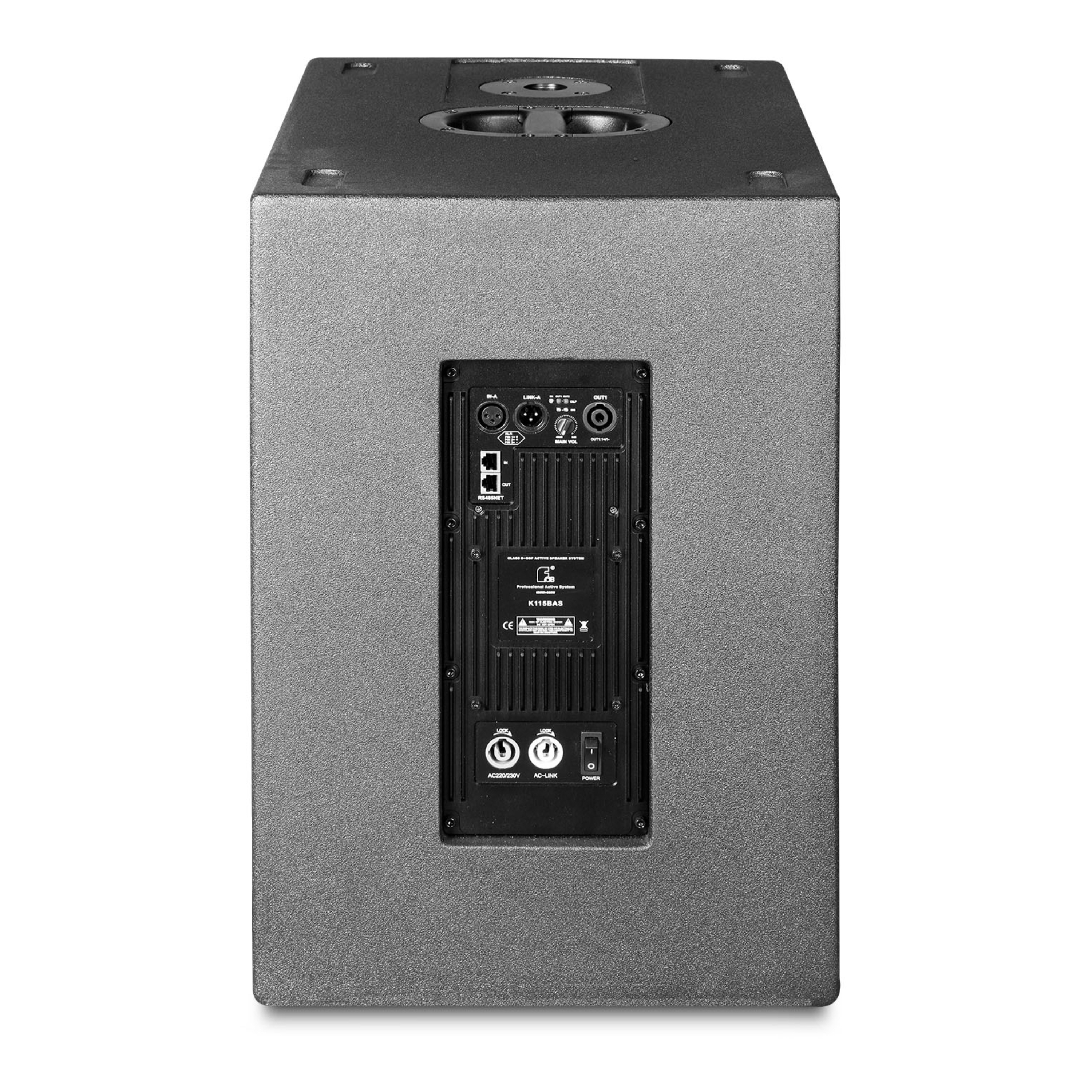

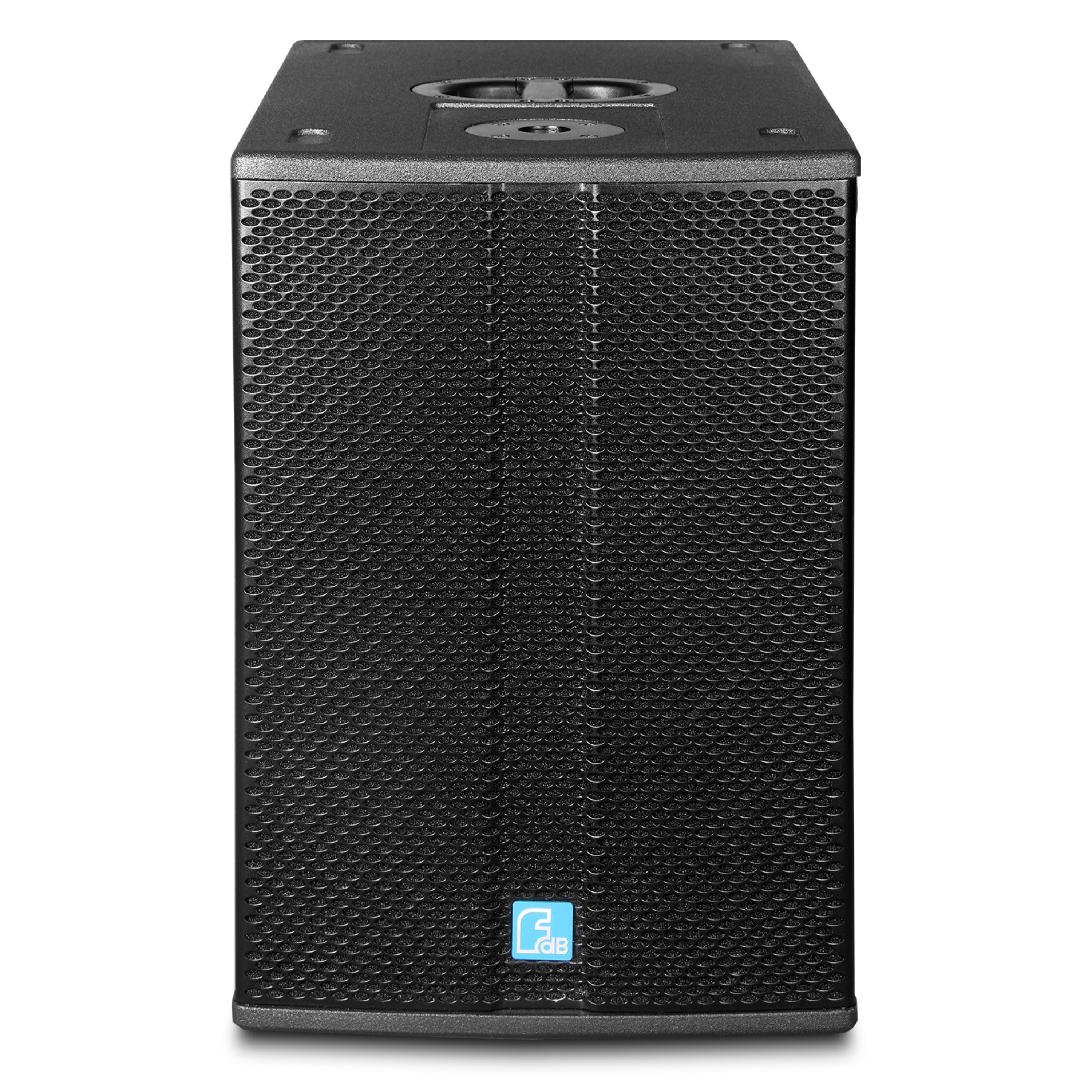

K115B is a single 15" subwoofer, bass-reflex design, customized woofer, rich and powerful sound. Unit configuration: 1x15" 100mm high efficicency woofer. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. K115BAS is an active system with two channels digital amplifier with DSP, which has full range and sub outputs functions.
Features:
●High quality unit configuration
●Multi-ways for installation, easy and quick operation
●Digital amplifier with DSP
●With full range and sub outputs
●Applications: small touring, churches, conference rooms, multifunction halls, can be used with K506/ K606/K806 to improve the bass performance.
Specification:
MODEL | K115B | K115BAS |
FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz and 50Hz-20kHz |
DRIVERS | 1x15"(300mm)/4"voice coil LF | 1x15"(300mm)/4"voice coil LF |
RATED POWER | 600W RMS,2400W PEAK | 900W/4Ω+1200W/4Ω |
SENSITIVITY | 99dB 1watt/1meter | —— |
MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,133dB peak |
IMPEDANCE | 8 ohms nominal | —— |
INPUT CONNECTORS | 2xSpeakon NL4 | INPUT TYPE: Balanced Differential line |
PACKAGE SIZE | 740x495x695mm | 740x495x695mm |
NET WEIGHT | 35 kg/pc | 37 kg/pc |
GROSS WEIGHT | 39 kg/pc | 41 kg/pc |
Configuration:
Data Sheets Download:
