Description:

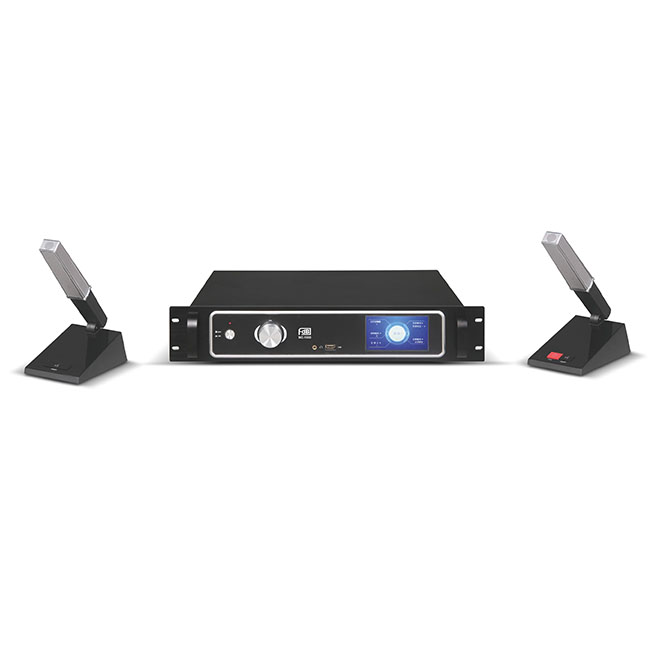

MC-1000 is a wired full digital conference system. The host of this system is the core part of the full digital conference system. It adopts DSP processing technologies such as feedback suppression, noise cancellation, automatic gain and digital equalization. It supports a variety of meeting modes selection, suitable for various types of meetings. The main host of the system can be installed on the 19 inch standard case, easy to store and keep. The conference unit of the system adops movable table, integrated big microphone tube. The unit is built in 14mm high-fidelity diaphragm sound head, super directional microphone array technology, and the sound picking distance can reach more than 80 CM.
Specification:
| HOST PARAMETERS | |
| Power Supply： | 220V AC |
| Static Power： | 12W |
| Max Output Power： | 350W |
| Frequency Range： | 20~20kHz |
| (S/N Ratio)： | ＞80dB |
| Harmonic Distortion： | ＜0.05% |
| Channel Crosstalk： | ＞80dB |
| Dimensions: | W 485mm(including handles) |
| H 100mm(2U,including case foot pat) | |
| D 355mm | |
| CONFERENCE UNIT PARAMETERS | |
| Frequency Range： | 80Hz~16kHz |
| Sensitivity： | -44dB±2dB |
| Refer Sound Picking Distance： | 15-80cm |
Data Sheets Download:
