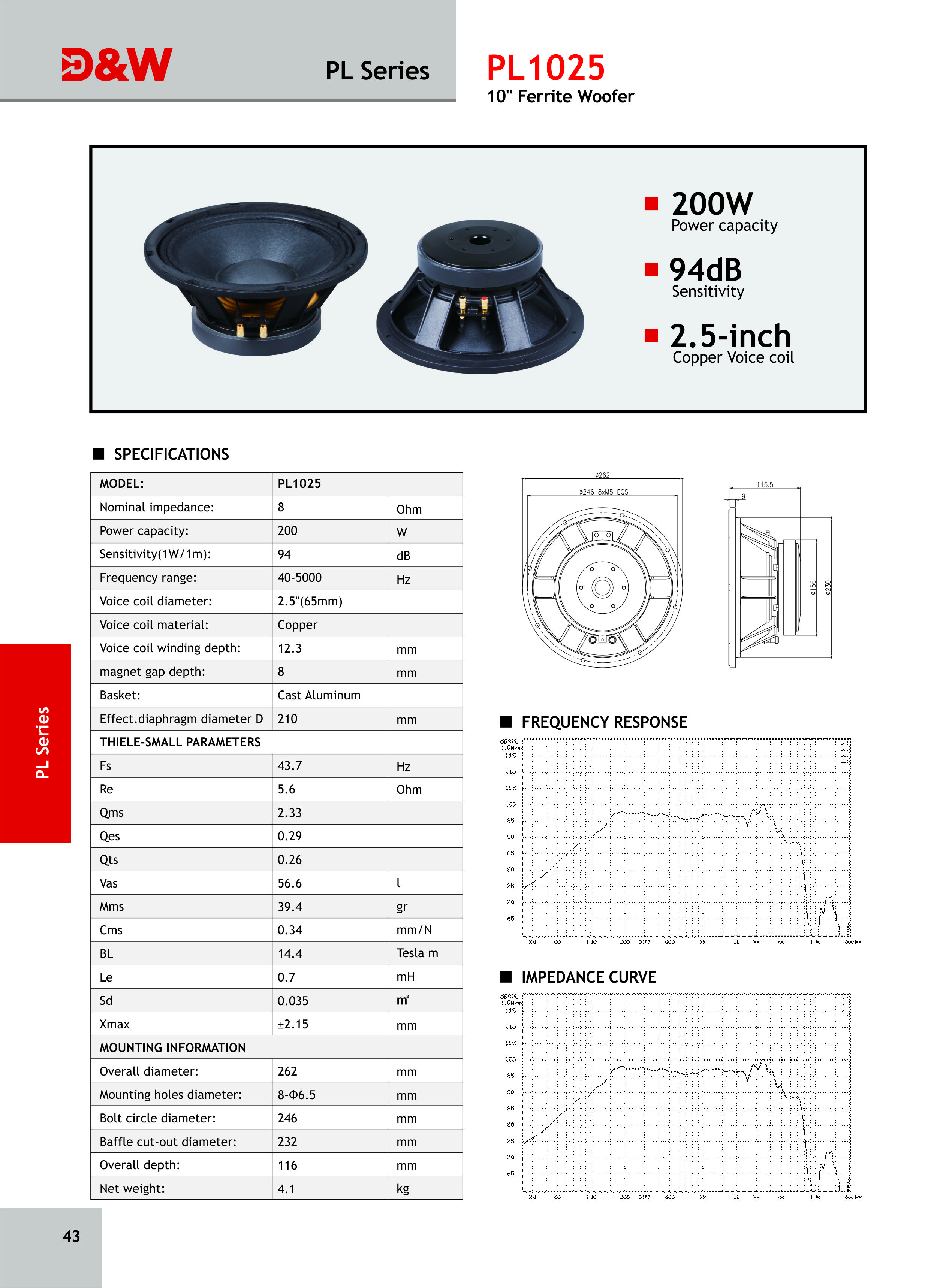

PL1025
Specification:
| MODEL | PL1025 | |
Norminal impedance | 8 | Ohm |
| Power capacity | 200 | W |
| Sensitivity(1W/1m) | 94 | dB |
| Frequency Range | 40-5000 | Hz |
| Voice Coil Diameter | 2.5"(65mm) | |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 12.3 | mm |
| magnet gap depth | 8 | |
| Basket | Cast Aluminum | |
| Effect.diaphragm diameter D | 210 | mm |
| THIELE - SMALL PARAMETERS4 | ||
| Resonance frequency Fs | 43.7 | Hz |
| DC resistance Re | 5.6 | ohm |
| Mechanical facto Qms | 2.33 | |
| Electrical factor Qes | 0.29 | |
| Total factor Qts | 0.26 | |
| BL Factor BL | 14.4 | T.m |
| Effective Moving Mass Mms | 39.4 | gr |
| Equivalent Cas air load Vas | 56.6 | liters |
| Effettive piston area Sd | 0.035 | m2 |
| Max. linear excursion (mathematical) Smax | ±2.15 | mm |
| Voice -C coil inductance @ 1KHz Le | 0.7 | mH |
| MOUNTING INFORMATION | ||
| Overall Diameter | 262 | mm |
| Bolt Circle Diameter | 246 | mm |
| Baffle Cutout Diameter | 232 | mm |
| Mounting holes diameter | 8-∅6.5 | mm |
| Overall depth: | 116 | mm |
| Net Weight | 4.1 | kg |
