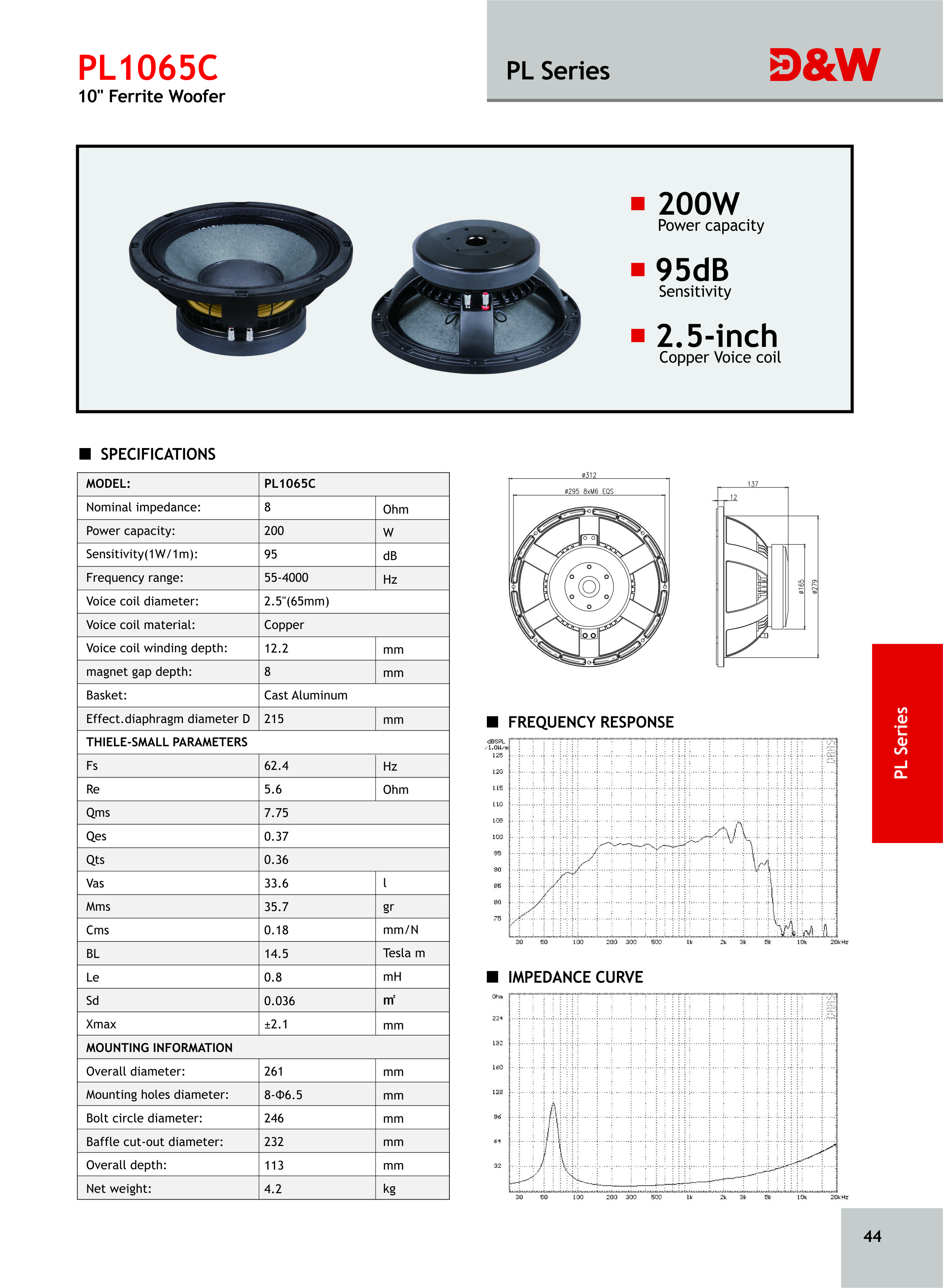

PL1065C
Specification:
| MODEL | PL1065C | |
Norminal impedance | 8 | Ohm |
| Power capacity | 200 | W |
| Sensitivity(1W/1m) | 95 | dB |
| Frequency Range | 55-4000 | Hz |
| Voice Coil Diameter | 2.5"(65mm) | |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 12.2 | mm |
| magnet gap depth | 8 | |
| Basket | Cast Aluminum | |
| Effect.diaphragm diameter D | 215 | mm |
| THIELE - SMALL PARAMETERS4 | ||
| Resonance frequency Fs | 62.4 | Hz |
| DC resistance Re | 5.6 | ohm |
| Mechanical facto Qms | 7.75 | |
| Electrical factor Qes | 0.37 | |
| Total factor Qts | 0.36 | |
| BL Factor BL | 14.5 | T.m |
| Effective Moving Mass Mms | 35.7 | gr |
| Equivalent Cas air load Vas | 33.6 | liters |
| Effettive piston area Sd | 0.036 | m2 |
| Max. linear excursion (mathematical) Xmax | ±2.1 | mm |
| Voice -C coil inductance @ 1KHz Le | 0.8 | mH |
| MOUNTING INFORMATION | ||
| Overall Diameter | 261 | mm |
| Bolt Circle Diameter | 246 | mm |
| Baffle Cutout Diameter | 232 | mm |
| Mounting holes diameter | 8-∅6.5 | mm |
| Overall depth: | 113 | mm |
| Net Weight | 4.2 | kg |
