S112
fdB
8518220000
Description:

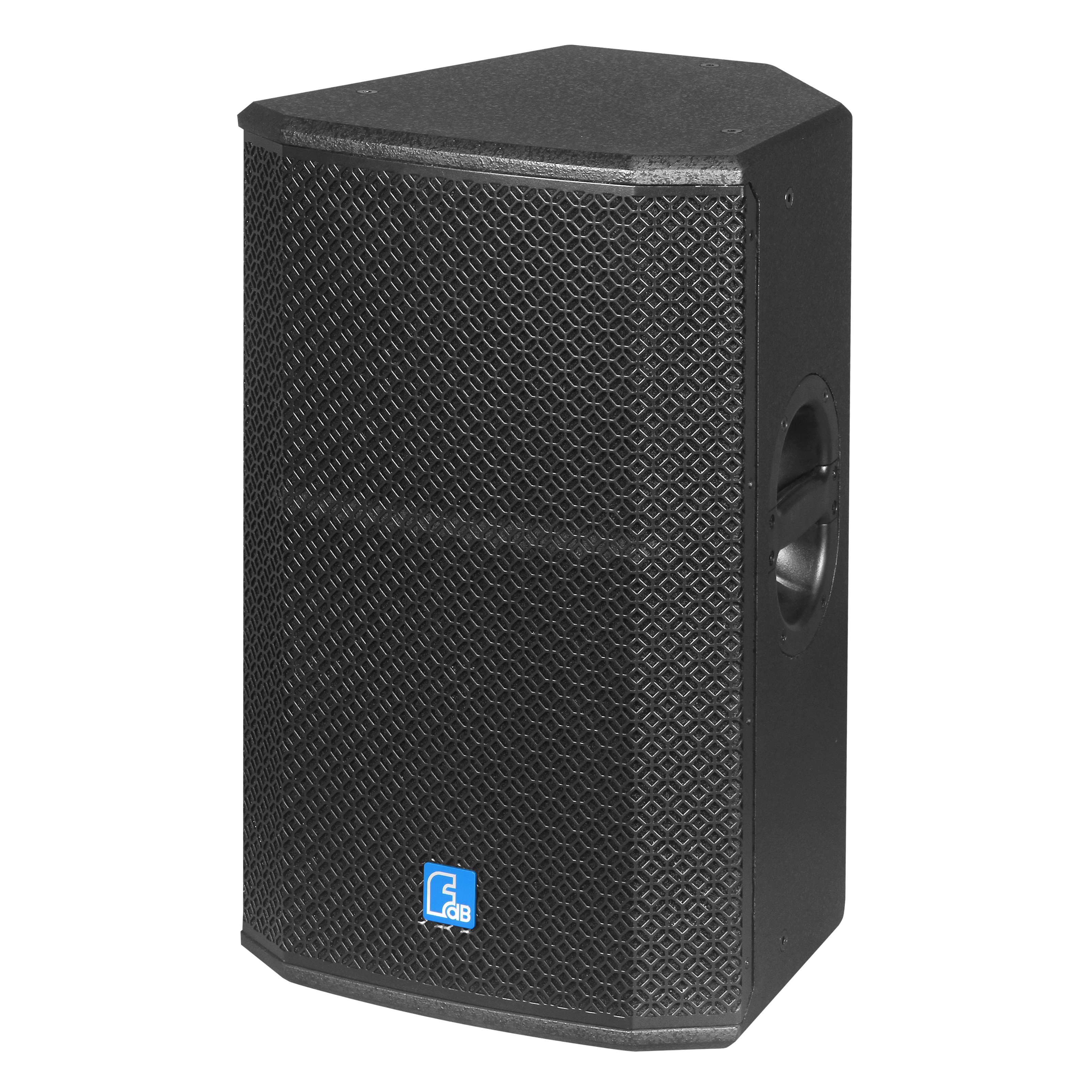

The S112 is a 12" two way full range speaker with clear,soft and powerful sound. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1" exit throat 44mm polyester diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●High quality unit configuration, high SPL
●Rotatable horn, multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms , hotel entertainment, touring
Specification:
MODEL | S112 |
FREQUENCY RESPONSE(-3dB) | 55Hz-18KHz |
FREQUENCY RESPONSE(-10dB) | 50Hz-20KHz |
DRIVERS | 1×12"(300mm)/3"voice coil LF |
1×1"(25mm)/1.7"voice coil HF | |
RATED POWER | 300W RMS,1200W peak |
SENSITIVITY | 97dB 1watt/1 metre |
MAXIMUM SPL | 122dB continuous,128 dB peak |
IMPEDANCE | 8 ohms nominal |
DISPERSION(-6dB) | 90°X50° |
CROSSOVER FREQUENCIES | 1.7kHz passive |
INPUT CONNECTORS | 2×Speakon NL4 |
PACKAGE SIZE | 464mm×460mm×700mm |
NET WEIGHT | 20 kg/pc |
GROSS WEIGHT | 24 kg/pc |
Configuration:
Data Sheets Download:
