U115AVI
Description:

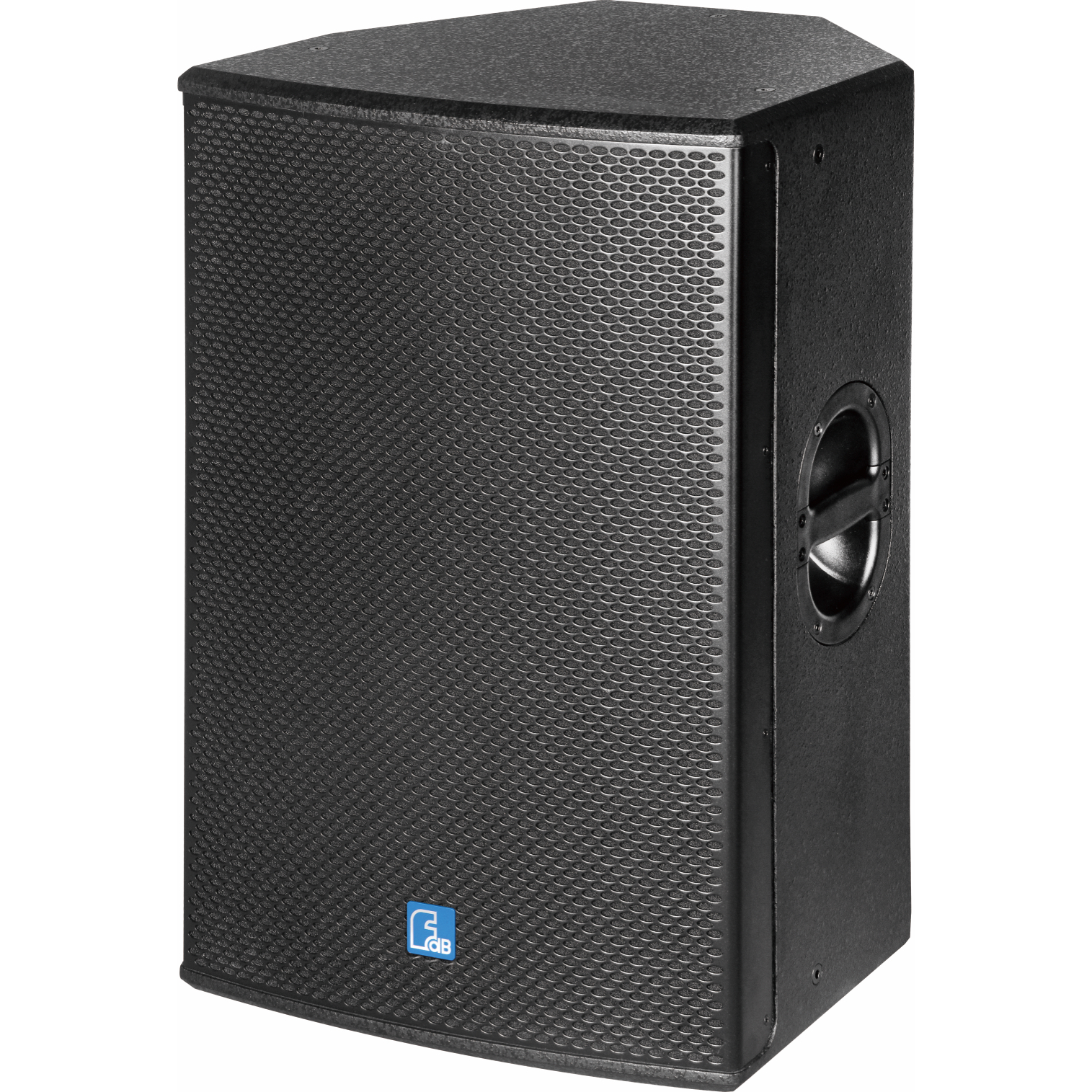

The U115VI is a 15" two way full range speaker with bright and powerful sound. Unit configuration: 1x15" high efficiency mid-bass unit, 1x1.4" exit throat 75mm composite diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. U115AVI is an active speaker with two channels and DSP digital amplfier.
Features:
●Product parameters have been entered into EASE loudspeaker database
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
Specification:
MODEL | U115VI | U115AVI |
FREQUENCY RESPONSE(-3dB) | 45Hz-18KHz | 45Hz-18KHz |
FREQUENCY RESPONSE(-10dB) | 40Hz-20KHz | 40Hz-20KHz |
DRIVERS | 1×15"(385mm)/3"voice coil LF | 1×15"(385mm)/2.5"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | 1×1"(25mm)/1.4"voice coil HF | |
RATED POWER | 400W RMS,1600W peak | 500W4Ω+50W/8Ω |
SENSITIVITY | 98dB 1watt/1 metre | —— |
MAXIMUM SPL | 124dB continuous,130 dB peak | 124dB continuous,130 dB peak |
IMPEDANCE | 8 ohms nominal | —— |
DISPERSION(-6dB) | 90°x 40° | 90°x 40° |
CROSSOVER FREQUENCIES | 1.5kHz passive | —— |
INPUT CONNECTORS | 2x Speakon NL4 | INPUT TYPE:Balanced Differential line |
PACKAGE SIZE | 580×560×820mm | 580×560×820mm |
NET WEIGHT | 30 kg/pc | 25 kg/pc |
GROSS WEIGHT | 35 kg/pair | 30 kg/pair |
Configuration:
Data Sheets Download:
