DLA803
fdB
8518220000
Description:

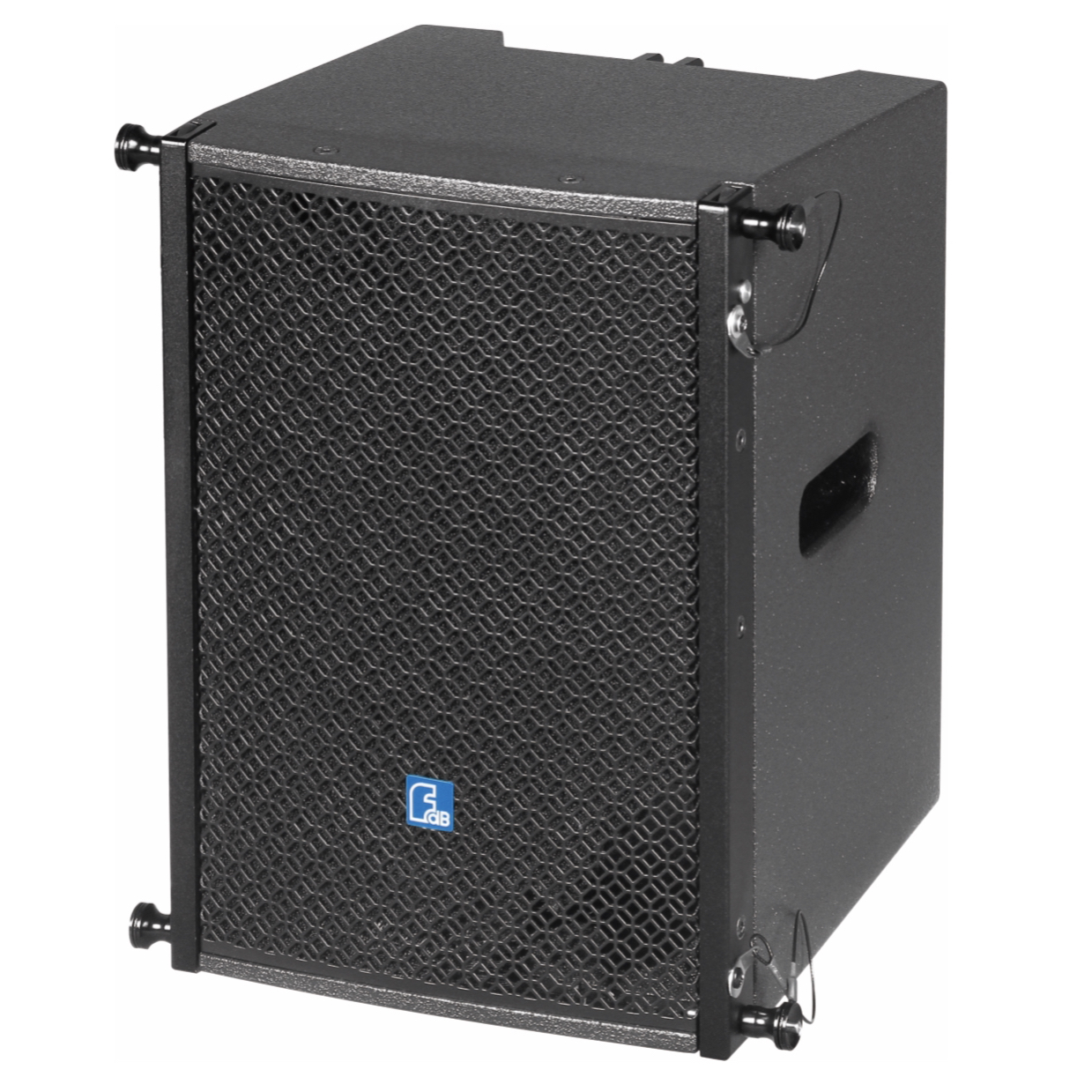

DLA803 is a small-sized, light weight, portable integrated line array speaker, which is composed of a small system with DLA815BAS. It features low distortion mid-bass unit, high quality HF driver with special waveguide and horn, compared with products of the same size, the HF and MF are transparent and bright, accurate coverage, uniform changes, three-point hanging system is very convenient for hanging or combining with DLA815BAS. Unit configuration:8x3" neodymium mid-bass units, 4x1" exit throat 25mm voice coil neodymium HF driver. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●Compression driver and horn, make the sound transparent and bright, verify once again that the design concept of no horn is not professional
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, large classrooms, churches and small touring
Specification:
| MODEL | DLA803 |
| FREQUENCY RESPONSE(-10dB) | LF: 120Hz-18kHz, HF: 2kHz-18KHz |
| DRIVERS | 8×3"(83mm)/0.8"voice coil Mid/High Unit |
| 4×1"(25mm)/1"voice coil HF | |
| RATED POWER | LF: 200W RMS,800W peak |
| HF: 80W RMS, 320W peak | |
| SENSITIVITY | LF: 97dB 1watt/1meter |
| HF: 105dB 1watt/1meter | |
| MAXIMUM SPL | LF: 120dB continuous,126dB peak |
| HF: 124dB continuous,130dB peak | |
| IMPEDANCE | LF: 8 ohms nominal |
| HF: 8 ohms nominal | |
| DISPERSION(-6dB) | Horizontal coverage: 90° |
| Vertical coverage: Varies, depending on array length and configuration | |
| CROSSOVER FREQUENCIES | 1.5KHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 330mm×315mm×428mm |
| NET WEIGHT | 7.5 kg/pc |
| GROSS WEIGHT | 9 kg/pc |

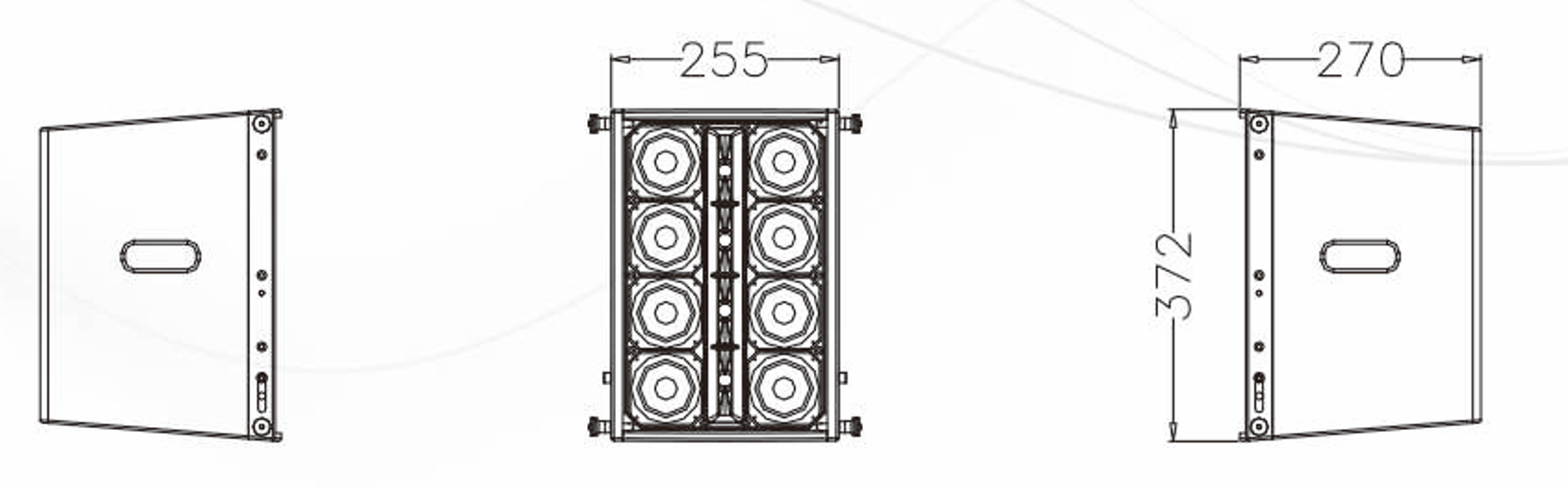

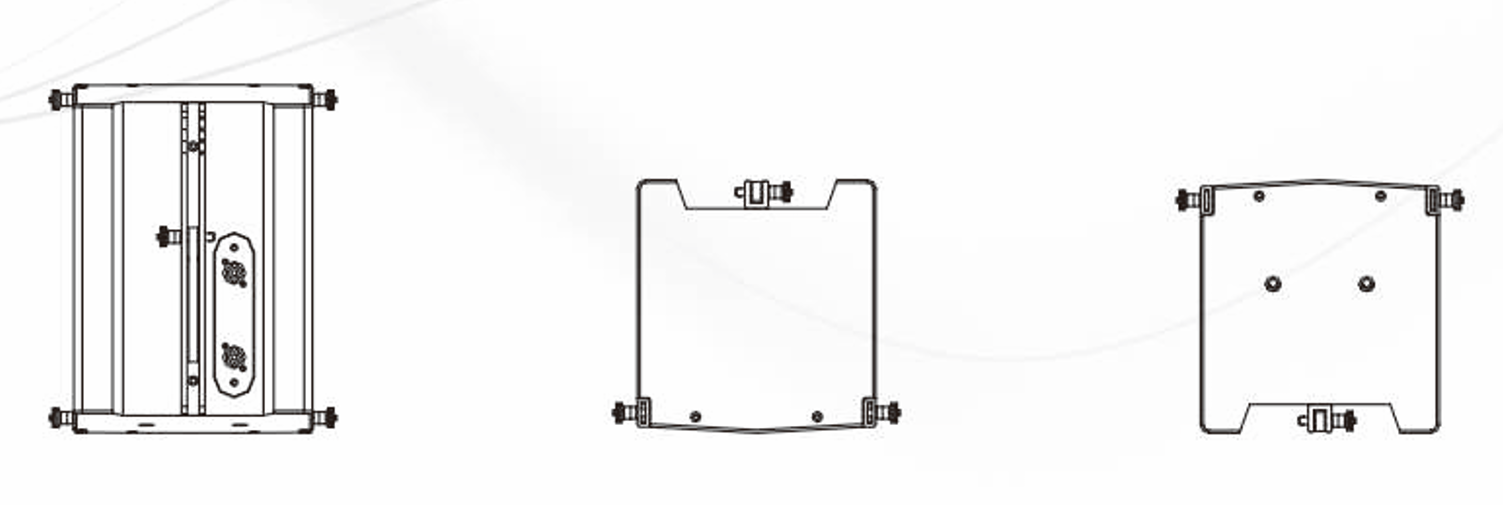

Configuration:
