S108
fdB
Description:

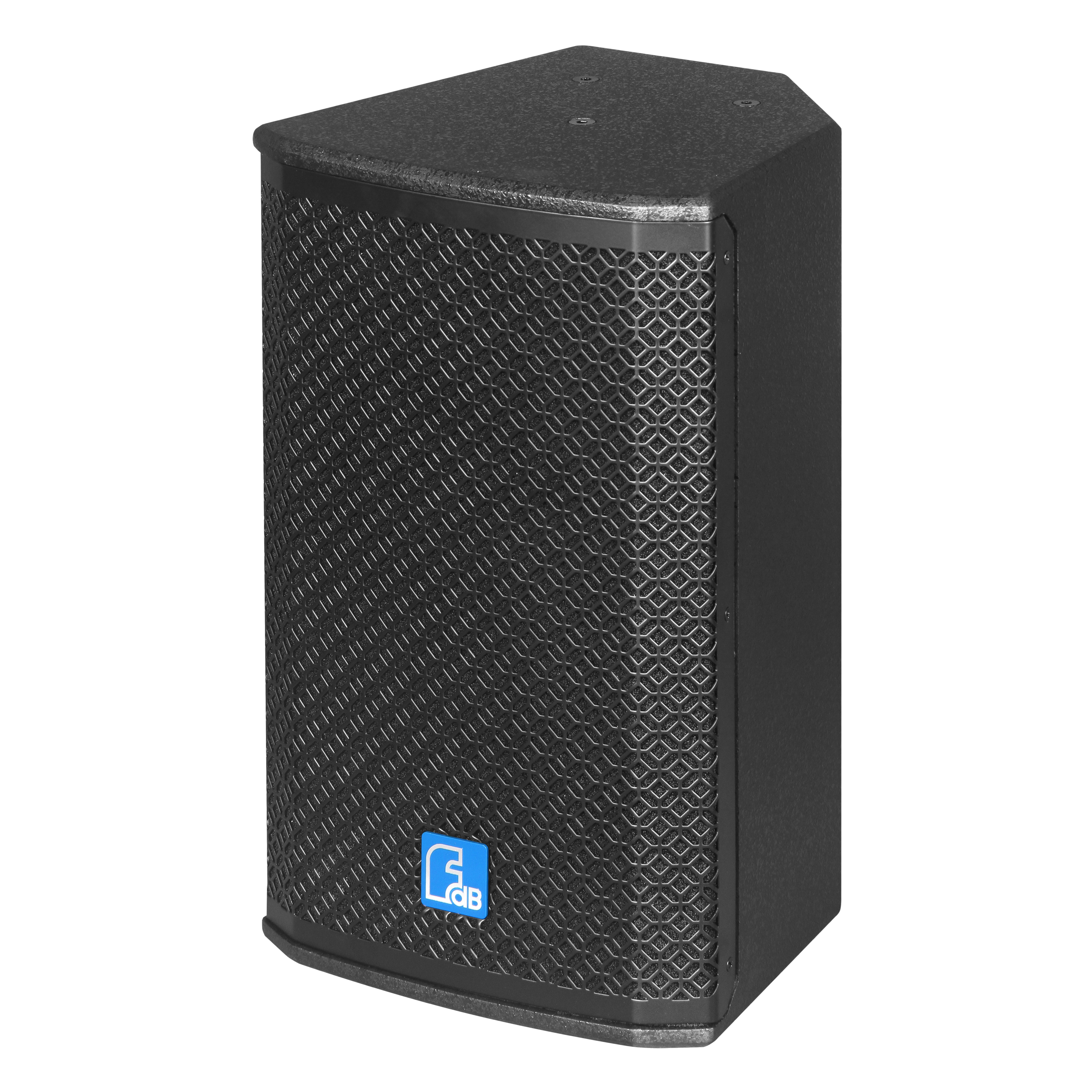

The S108 is a 8", small sized, light weight, two way full range speaker with clear and soft sound. Unit configuration: 1x8" high efficiency midbass unit, 1x1" exit throat 25mm mylar diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●Clear and soft sound
●Rotatable horn, multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms
Specification:
| MODEL | S108 |
| FREQUENCY RESPONSE(-3dB) | 80 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 75Hz-20KHz |
| DRIVERS | 1×8"(200mm)/2"voice coil LF |
| 1×1"(25mm)/1"voice coil HF | |
| RATED POWER | 150W RMS,600W peak |
| SENSITIVITY | 93dB 1watt/1 metre |
| MAXIMUM SPL | 115dB continuous,121 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 2.8kHz passive |
| INPUT CONNECTORS | Covered barrier strip terminals |
| PACKAGE SIZE | 344mm×340mm×523mm |
| NET WEIGHT | 10 kg/pc |
| GROSS WEIGHT | 12 kg/pc |
Configuration:
